Howell Abduction-Force Research Test Device.


Howell Abduction-Load Research Test Device precisely demonstrates & calibrates ACL-friendly Howell SkiBindings.

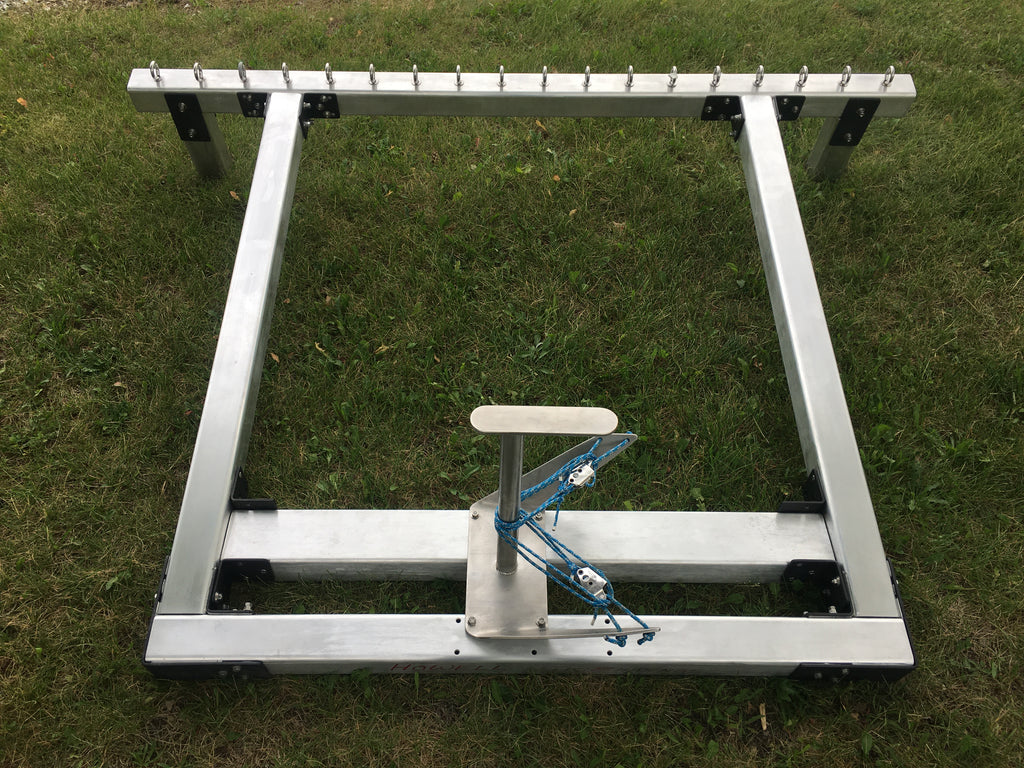

6-foot by 6-foot by 2-inch stainless-steel test-frame.  All frame components are to be assembled by purchaser using the supplied stainless-steel brackets and stainless steel bolts that are supplied.  All assembly holes are pre-drilled.

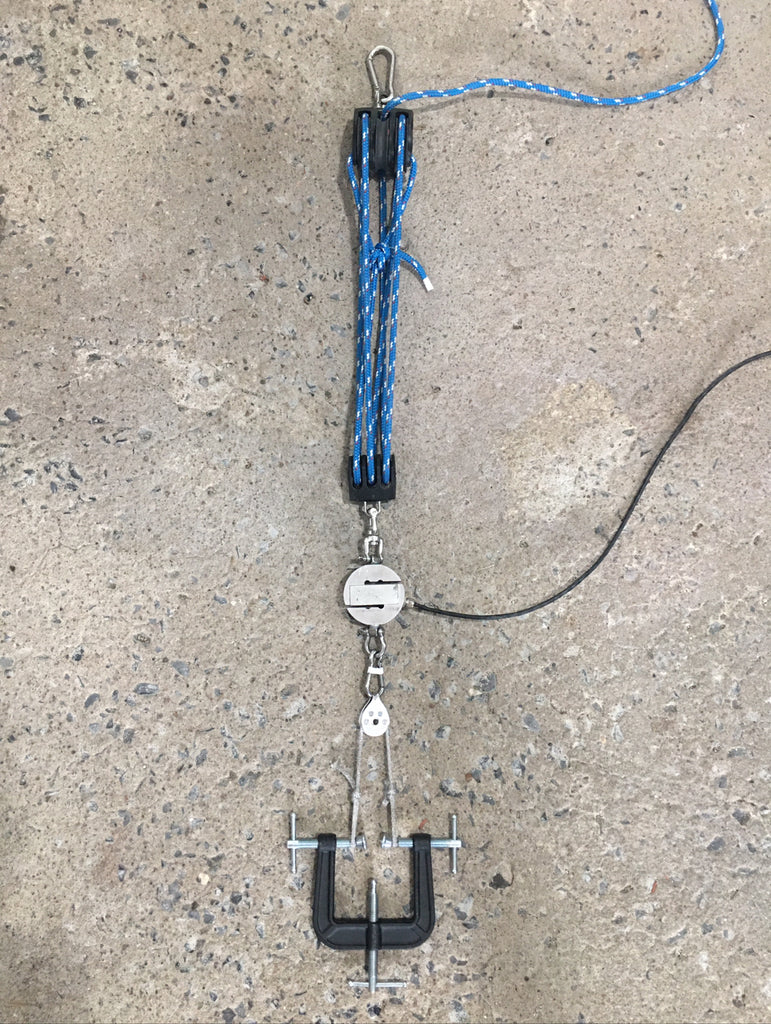

High-strength applied-force sailing-line, plus 3-to-1 ratio yacht-racing block / pulley.

Applied-abduction-force transducer range:  1 to 350-pounds, with over-load limiter.

Electronic signal-conditioning (with automatic temperature balancing) and digital peak-load display;

Applied-abduction-force ski-clamp hardware;

Released-ski preventer-hardware & rigging (requires minimum 18-foot ceiling);

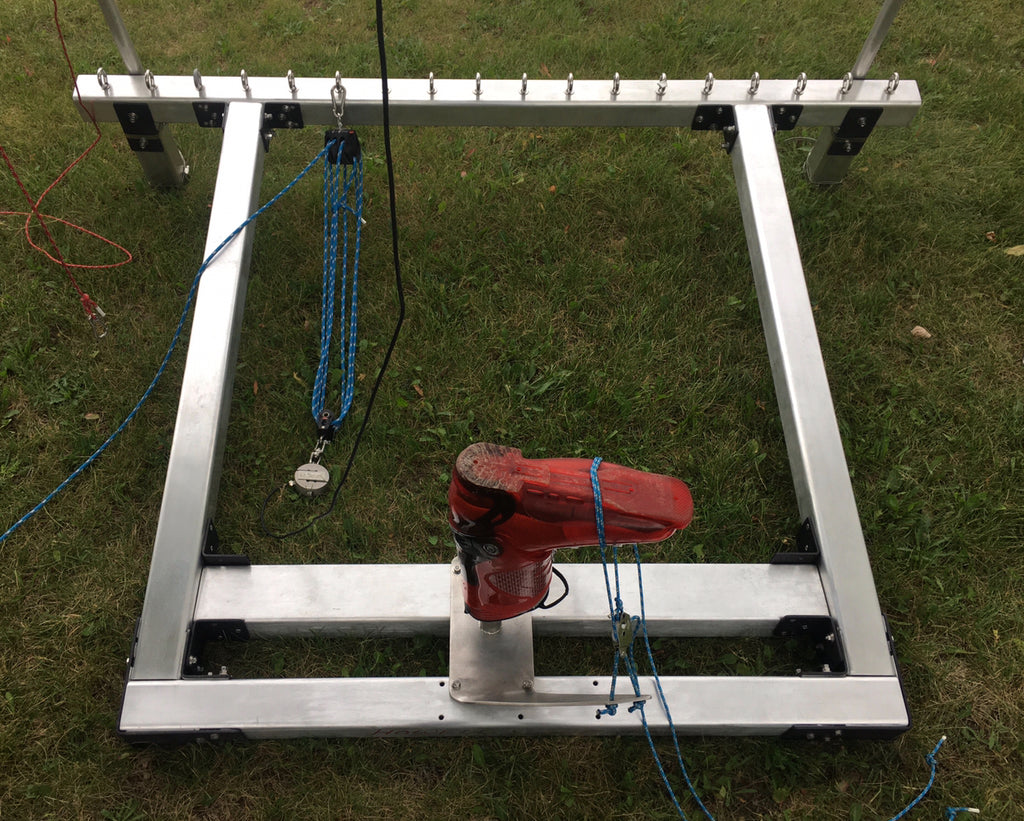

Stainless-steel boot-holding fixture and rigging (rigidly fixes any ski-boot — alpine, AT, telemark);

6 certified 25-pound calibration weights (each shipped separately);

Biomechanical ACL-rupture threshold data.

Does not include ski, boot, or binding.

3 wooden shipping crates:  1 electronics;  1 calibration weights;  1 the balance.  All 3 crates have the goods internally-wrapped in plastic to mitigate water-intrusion.

Available now for 60-day delivery.

FOB Granby, Québec, Canada.




☄️ Special note to scientists currently practicing ‘normal science’ pertaining to skiing-ACL research —

       Independent-validation of the biomechanics behind Howell SkiBindings may be useful for those who seek to reach beyond ‘normal science’ — to explore the interrelationship between ski-binding function and surrogate ACL, MCL, meniscus and tibial-plateau integrity / failure.

       Normal science in ski-binding biomechanical research measures tibia-biomechanics — resultant torsional-tibia-torques and resultant forward-bending-tibial-moments arising from abduction-force applied to the front-third and rear-third of a ski.

       Ski-binding related biomechanical research that reaches beyond normal science to investigate ACL, MCL, meniscus, and tibial-plateau biomechanics — extraordinary science — includes the additional measurement of (1) the magnitude of the applied-abduction-force, (2) the magnitude of the resultant abduction-moments, and (3) the applied-abduction force located at all positions along the full-length of a ski — especially the middle-third of the ski.  This special research test device reaches beyond normal science to provide the exploration of extraordinary science.

                 — RJH,  May, 2022



To order Howell SkiBindings:

Howell Venus   DIN 2.5–8    Uniquely extra ACL, MCL, meniscus, tibial-plateau friendly for women.  Patented.

Howell Mars   DIN 4–12    ACL, MCL, meniscus, tibial-plateau friendly.  Powerful anti-pre-release at chart settings.  Powerful edge-control.  Patented.

Howell Planet-B   DIN 8–22   Titanium housings.   Bockable additional-lateral-heel release for racing / unblockable for training.  CAUTION:  EXTREME SKIERS & RACERS ONLY.  Max retention.  Max edge-control.  Patented.
